XHRL 系列

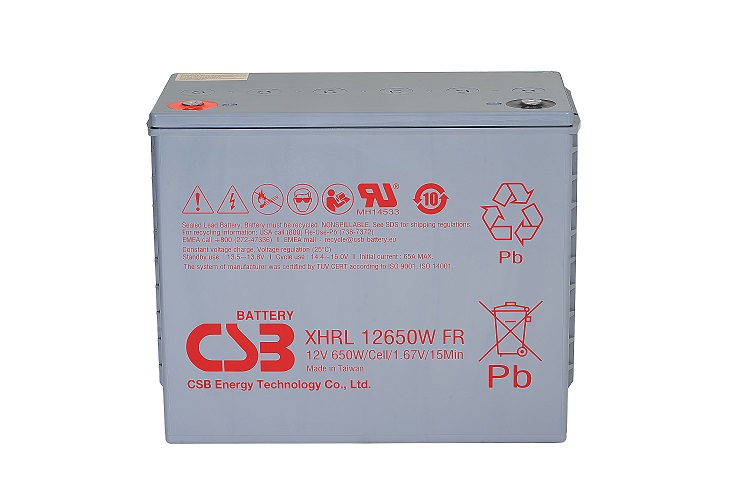

CSB蓄电池XHRL 12650W

.：XHRL 12650W battery is specially designed for high-rate discharge applications. service life is up to 10 years in standby use.

XHRL 12650W

12 V	650.0w/cell
XHRL 12650W battery is specially designed for high-rate discharge applications. service life is up to 10 years in standby use.

下载专区 :

规格书

局数

电压值

12 V

安培数	650.0W@ 15 Minute-Rate to 1.67V Per Cell @ 25°C(77°F)

重量	Approx. 47.90 Kg (105.57 lbs)

最大放电电流

1350A

内阻	Approx. 2.33 mΩ

温度工作范围

Discharge：-15℃~50℃ (5°F~122°F)
Charge：-15℃~40℃ (5°F~104°F)
Storage：-15℃~40℃ (5°F~104°F)

一般使用温度工作范围

25°C±3°C (77°F±5°F)

浮充使用充电电压

13.5 to 13.8 VDC/Unit Average at 25°C(77°F)

建议充电最大电流

65A

均充使用充电电压

14.4 to 15.0 VDC/Unit Average at 25°C(77°F)

自放电	Less than 10% after 90 days, can be stored up to 6 months at 25℃ (77℉)

端子	I2 thread lead alloy terminal to accept M6 bolt

电槽材质	PP (UL 94-HB) & Flame Retardant (94-V0) available upon request
